What is Aramid Fiber? The Core Material of Ballistic Helmets Explained
Aramid fiber is a high-strength, high-modulus synthetic fiber first developed by DuPont in the 1960s. Despite its low density, it is more than five times stronger than steel wire — with exceptional heat resistance, chemical stability, and impact energy absorption. These properties make it the material of choice for modern ballistic protection equipment worldwide.
How Does Aramid Fiber Work?
Aramid fiber's tightly bonded molecular chain structure allows it to rapidly dissipate kinetic energy upon impact. When a projectile or fragment strikes an aramid-based helmet shell, the energy is spread across thousands of interwoven fibers — dramatically reducing the force transmitted to the wearer's head. This mechanism is what makes aramid far superior to conventional materials like steel or ABS plastic in ballistic applications.
Types of Aramid Fiber
The two primary categories used in ballistic protection are:
- Para-aramid (e.g., Kevlar®, Twaron®) – The most widely used type in ballistic helmets and body armor. Offers the highest tensile strength and is the standard for NIJ-certified protective equipment.
- Meta-aramid (e.g., Nomex®) – Primarily used for flame and heat resistance in firefighting gear and flight suits, rather than ballistic protection.
Applications of Aramid Fiber
Thanks to its unique combination of properties, aramid fiber is used across demanding industries:
- Military & Law Enforcement – Ballistic helmets, body armor vests, and vehicle armor panels
- Aerospace – Structural reinforcement in aircraft fuselages and rotor blades
- Emergency Services – Protective gear for firefighters, bomb disposal units, and rescue teams
- Tactical & Security – Helmets and plate carriers for private security and tactical units
Aramid Fiber in Ballistic Helmets: Air Frame Aramid AF

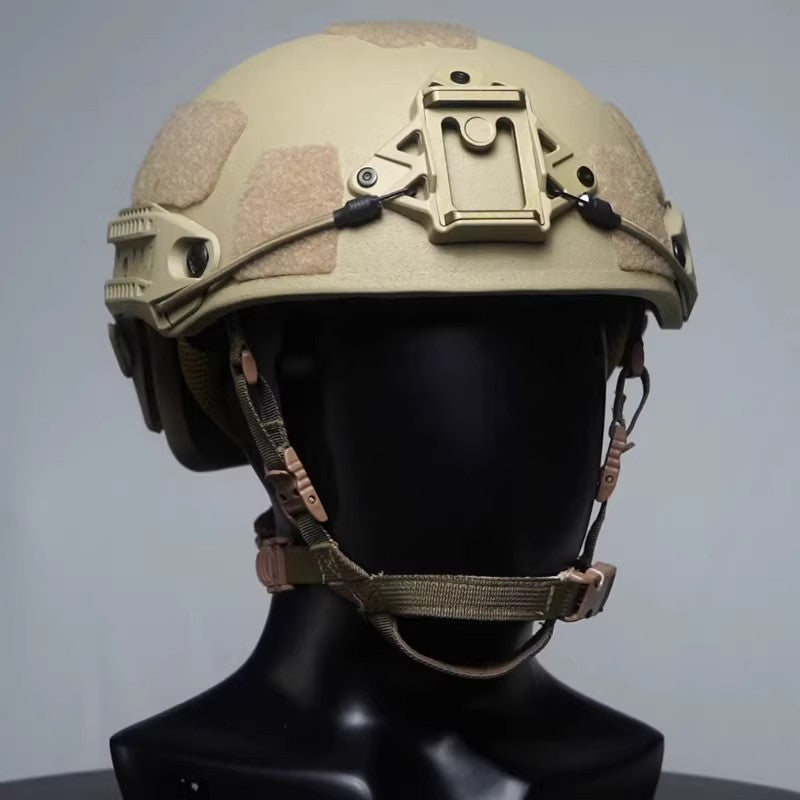

Our Air Frame Aramid AF Ballistic Tactical Helmet is a direct application of para-aramid technology at its finest. The shell is constructed from multi-layer woven aramid fiber formed through high-pressure compression molding — delivering a lightweight yet highly impact-resistant structure that meets NIJ Level IIIA ballistic standards.
Key Features
- NIJ Level IIIA Certified – Tested to resist .44 Magnum and 9mm rounds as well as high-velocity fragments
- Wendy Suspension Liner System – Distributes pressure evenly across the skull, eliminating hotspots and discomfort during extended wear
- Lightweight Construction – Aramid shell significantly reduces weight vs. steel alternatives without compromising protection
- Modular Accessory Rail System – Compatible with NVG mounts, communication headsets, cameras, and tactical lights
- Versatile Use Cases – Tactical operations, emergency rescue, extreme outdoor activities, and law enforcement training
Why Aramid Over ABS or Steel?
While ABS helmets serve well for training and recreational use, they offer no ballistic protection. Steel helmets, though historically significant, are heavy and can cause spalling. Aramid fiber helmets strike the optimal balance — certified ballistic protection at a fraction of the weight, making them the professional standard for military and law enforcement worldwide.
